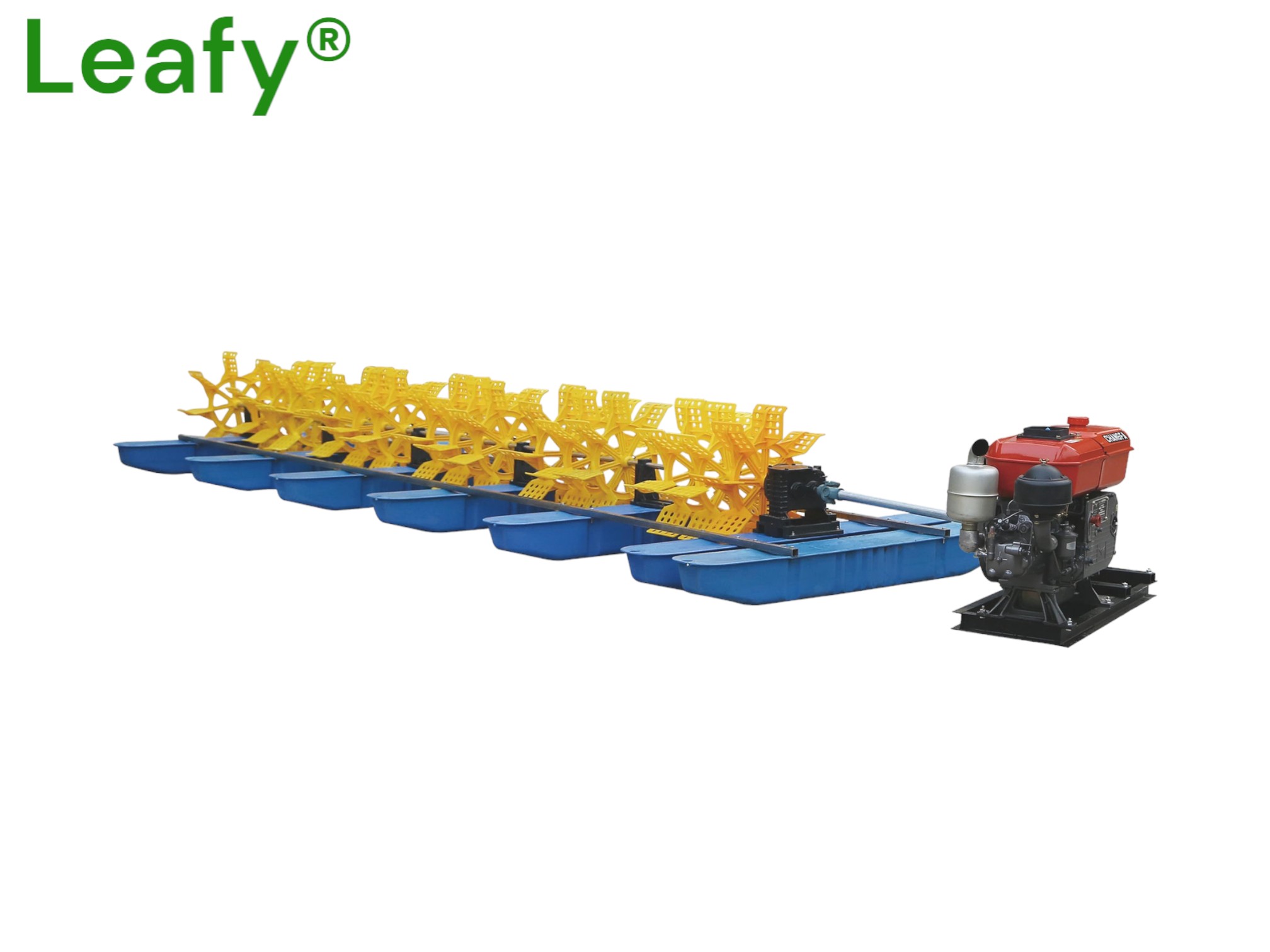

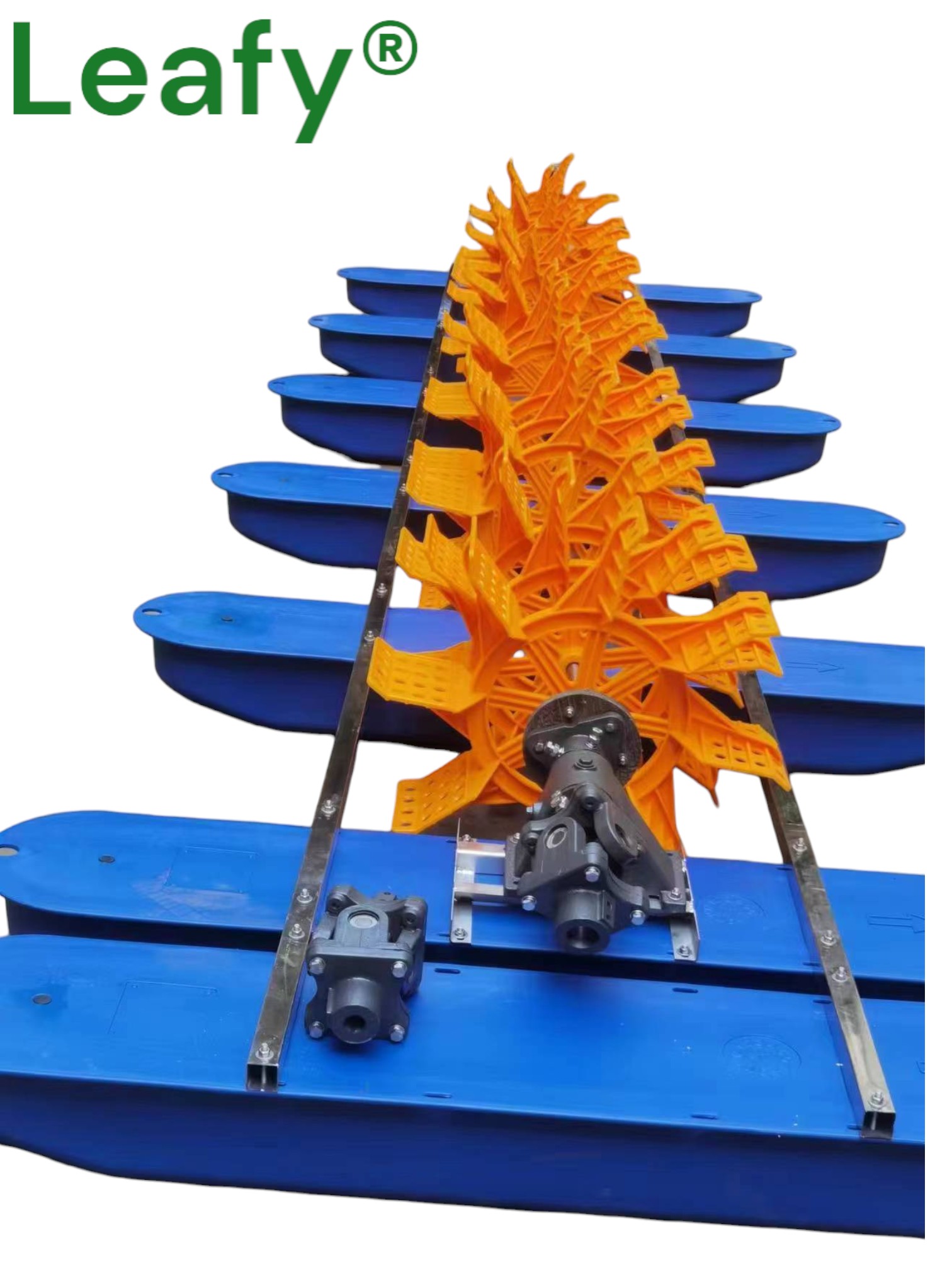

Our Diesel Aerator Advantages:

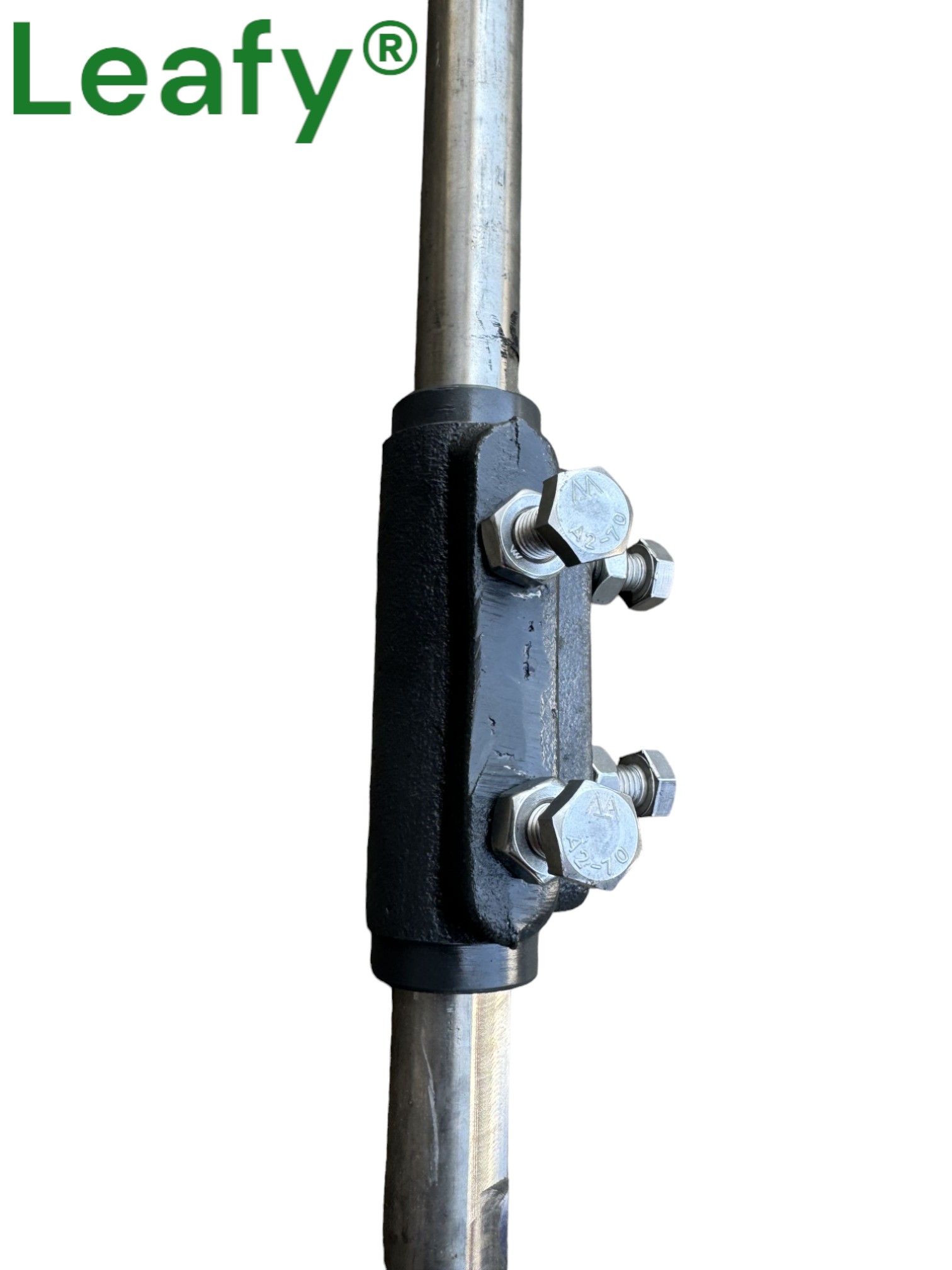

A: New type movable joints:
1.won’t rust;
2. High hardness: longer service life (improved 50% than other type).
B: New type bracket bearing:
1. No oil leak;
2. Big size shaft will longer working life. About 20% improved.
C: Higher Performance HDPE Impeller with thicker Brass Parts:
1. Replaceable paddle, lower maintenance cost.
2. Toughness against corrosion and sunburn resistance.
3. Professional designed paddle and best blade angle, substantial water splash, strong water current, and high oxygenation performance.
4. 100% New HDPE with UV resistance material and without adding any other material to increase weight.
D: 100% New HDPE Float Boat:
1. Made of 100% new HDPE material to optimize full ductility.
2. Resist impact, acid-alkalinity and sun exposure.
3. One-piece blow molded with absolutely no seeping.
4. 100% New HDPE with UV resistance material and without adding any other material to increase weight.
E: Complete machine:
1. Higher effective working area,push the water distance increased 5-10m than others.
2. Higher oxygen transfer, 10-20% more than others.
3. Longer working life, more than 4-5 years working life(20-30% working life improved than others).
Specification:
| Model | Power(KW) | Power (HP) |
Diesel Engine | Loading Pond Area(㎡） | Float Qty(pcs) | Ability of Increase Oxygen (Kg/h) | Load QTY per 20GP container | Load QTY per 40HQ container |

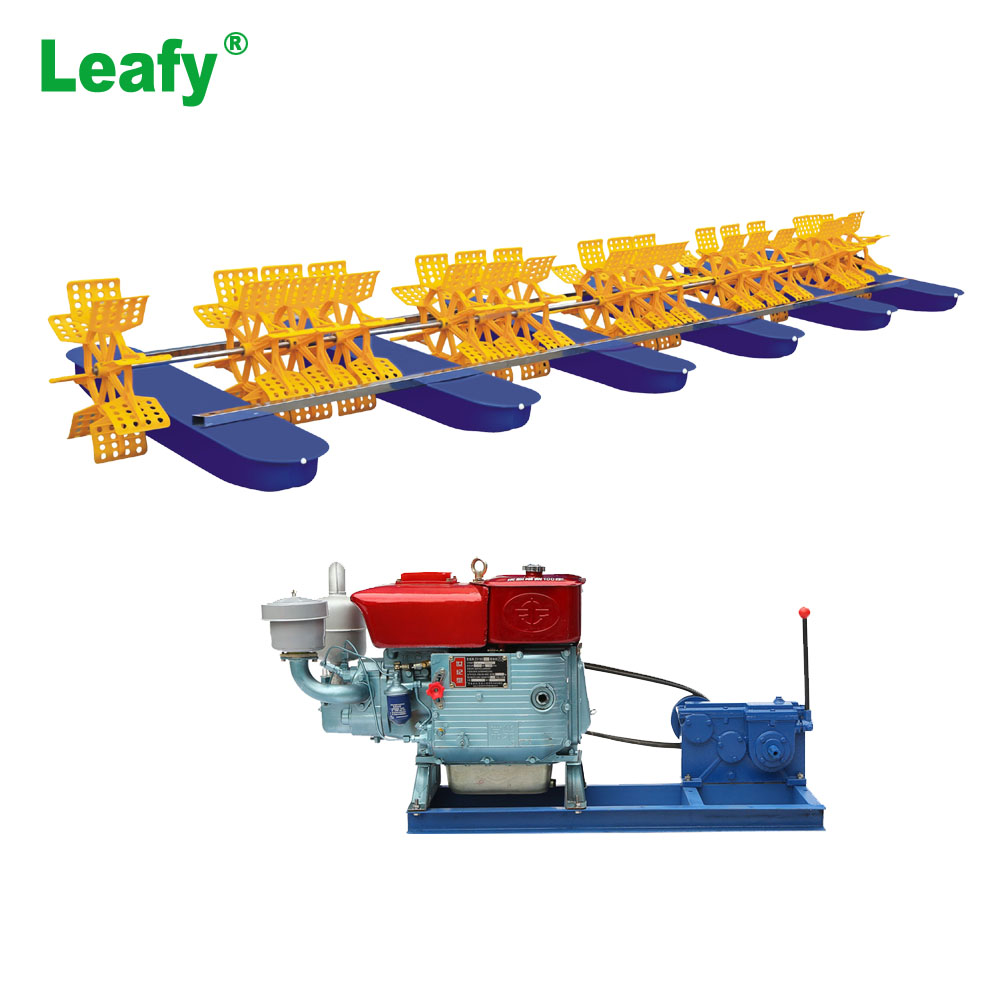

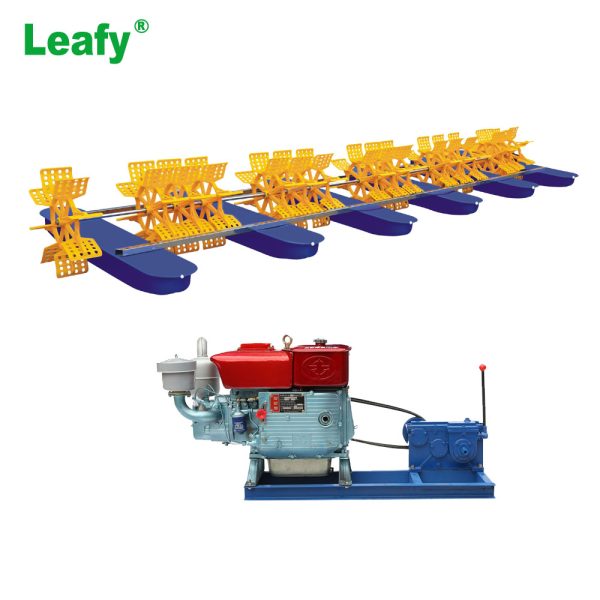

| DE-16 | 12 | 16 | Changfa Brand CF1100/ CF1100N/CF1100NW | 1000-8000 | 6/7 | ≥5 | 26pcs | 65pcs |
| Impeller RPM | 100-110 | Impeller QTY(pcs) | 16 |
| Float QTY(pcs) | 6 | Size and weight per unit | 1.046cbm, 156kg |
| Accessories | Quantity(pcs) | Specification |
| 1. Diesel engine | 1 | 16HP Changfa diesel engine. |

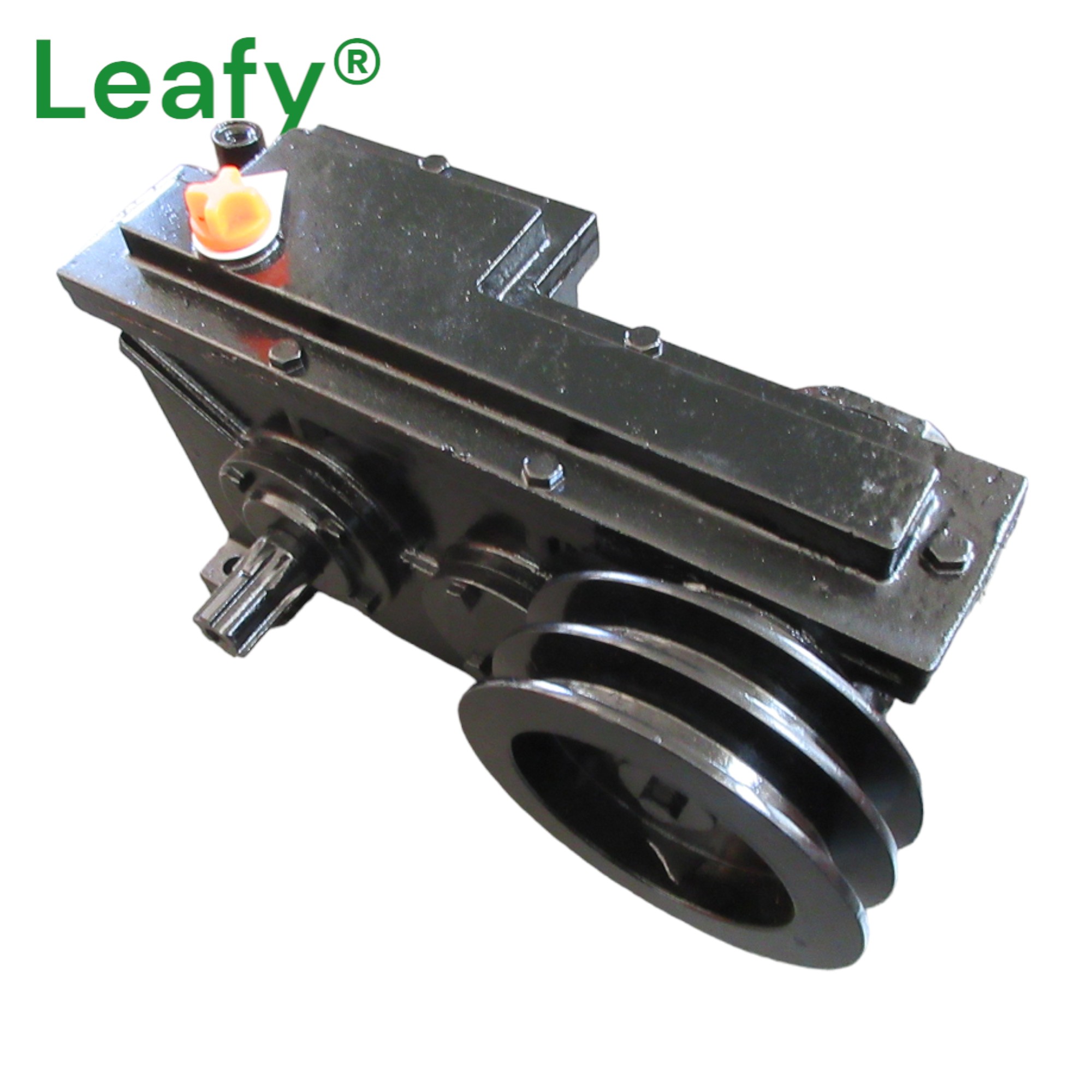

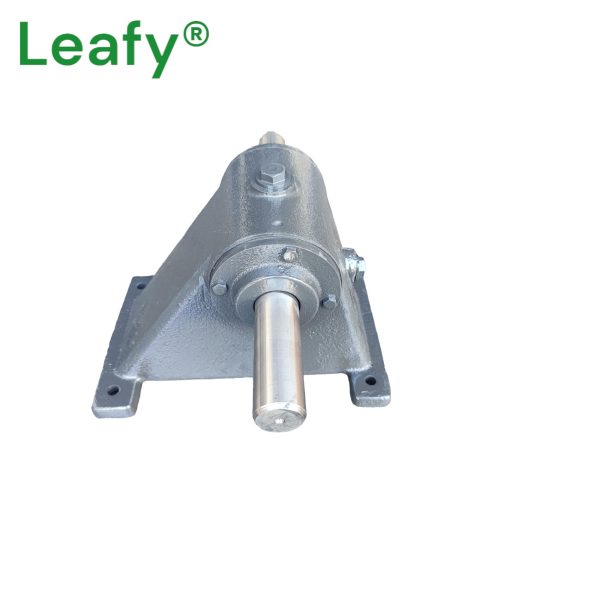

| 2. Reducer | 1 | Bevel Gear Style, Cast Iron Body. |
| 3. Impellers | 16 | 1. Unique one-piece design with forified structure. 2. Material: Virgin PP or Nylon with UV resistance(100% new material) 3. Dimension:210*670mm Net Weight: 2.5Kg |

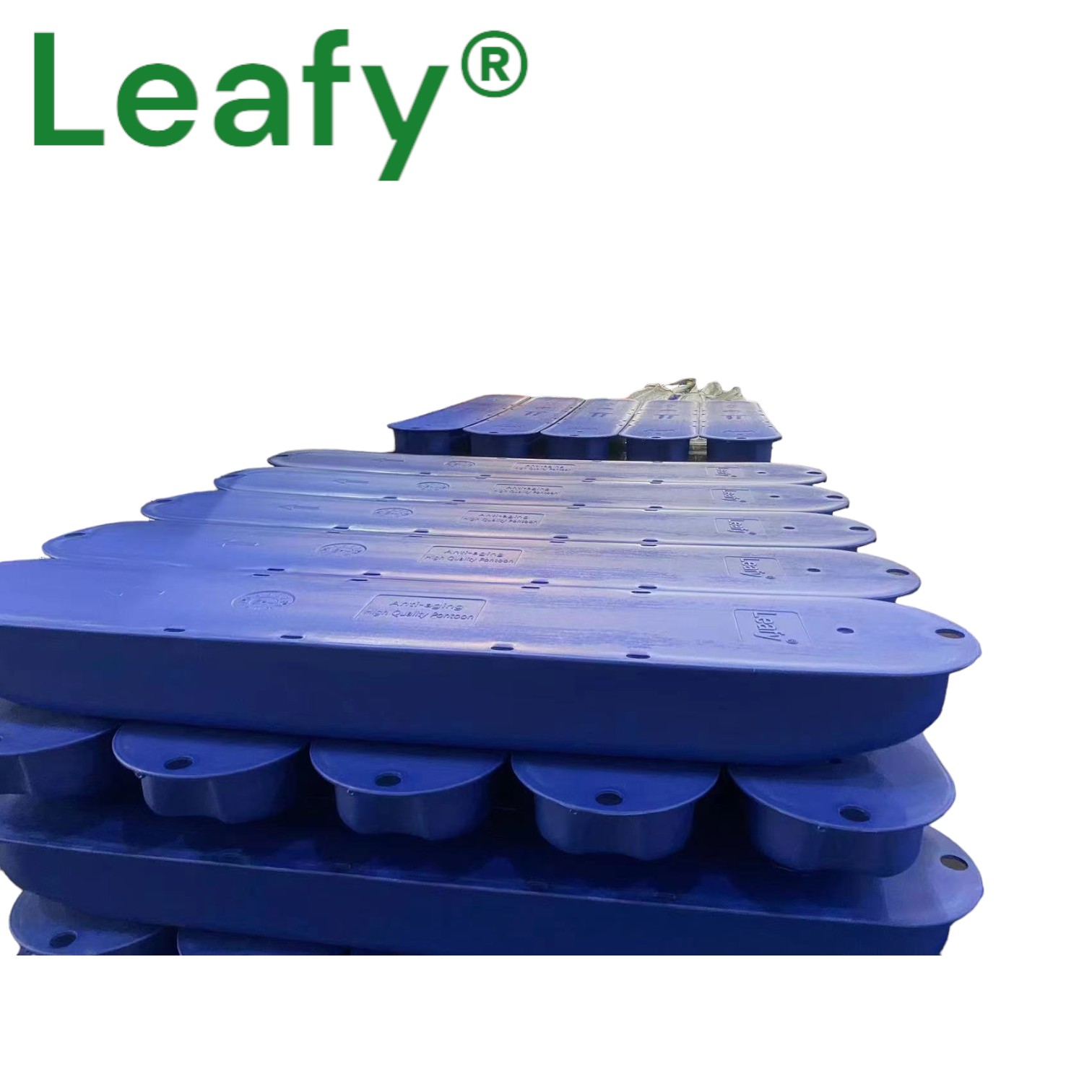

| 4. Float Boat | 6 | 1.Integral blow molded formation, no water seeping problem 2. Excellent in withstanding larger impact, corrosion free and weathering 3. Material: Virgin HDPE with UV resistance(100% new material) 4. Dimension:1750*330*210mm Net Weight:7KG |
| 5. Motor Cover | 1 | Material: Virgin HDPE with UV resistance(100% new material) Net Weight: 2.0KG |

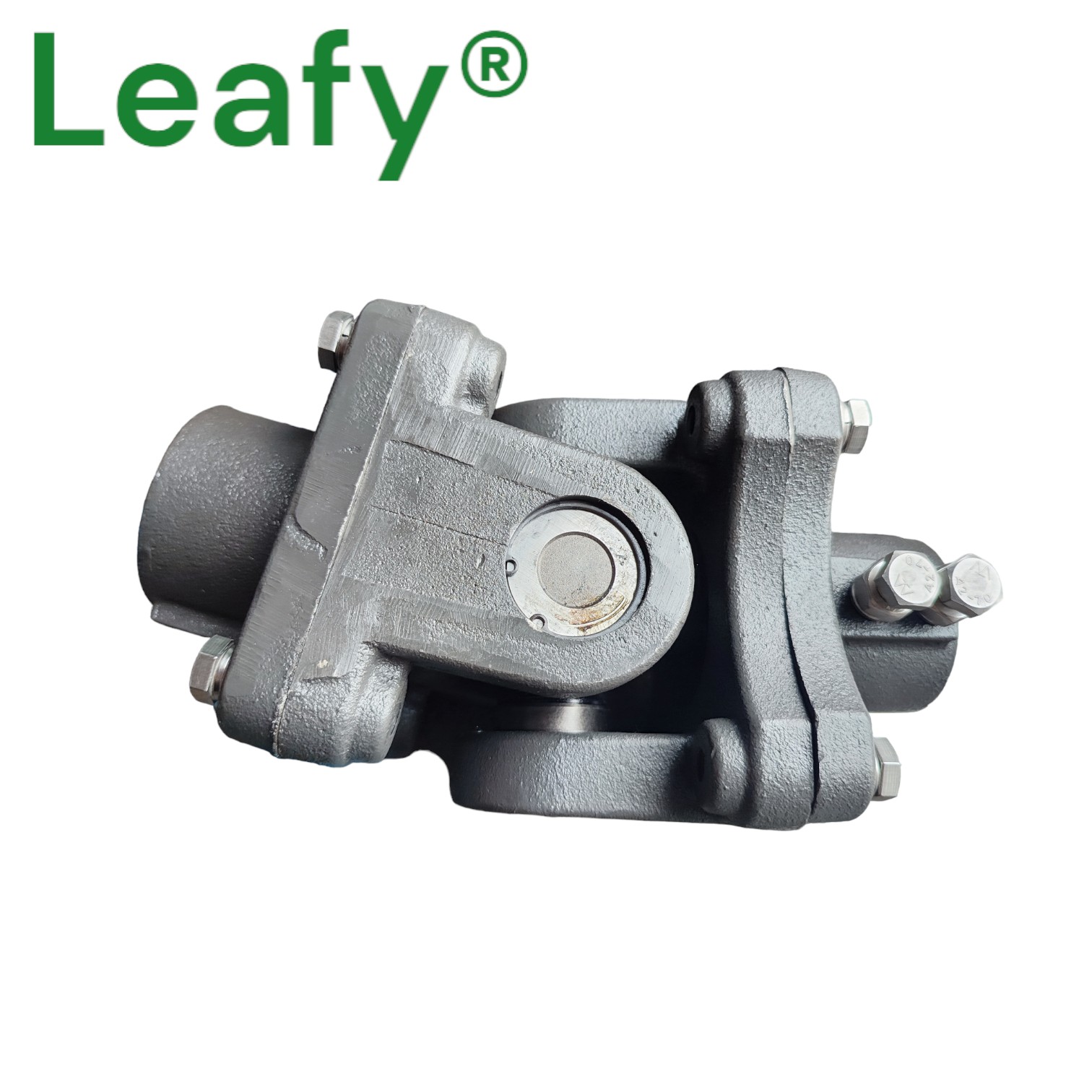

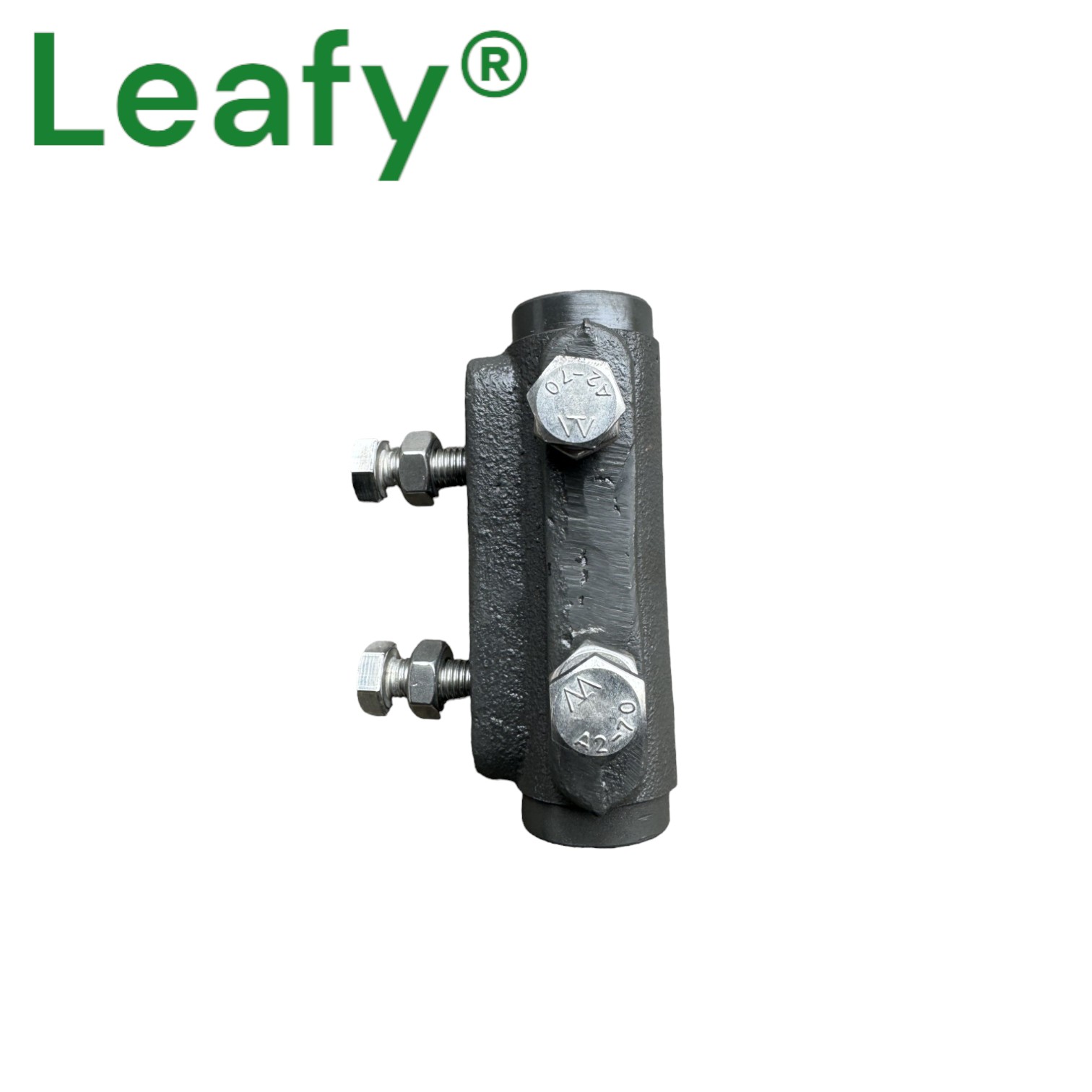

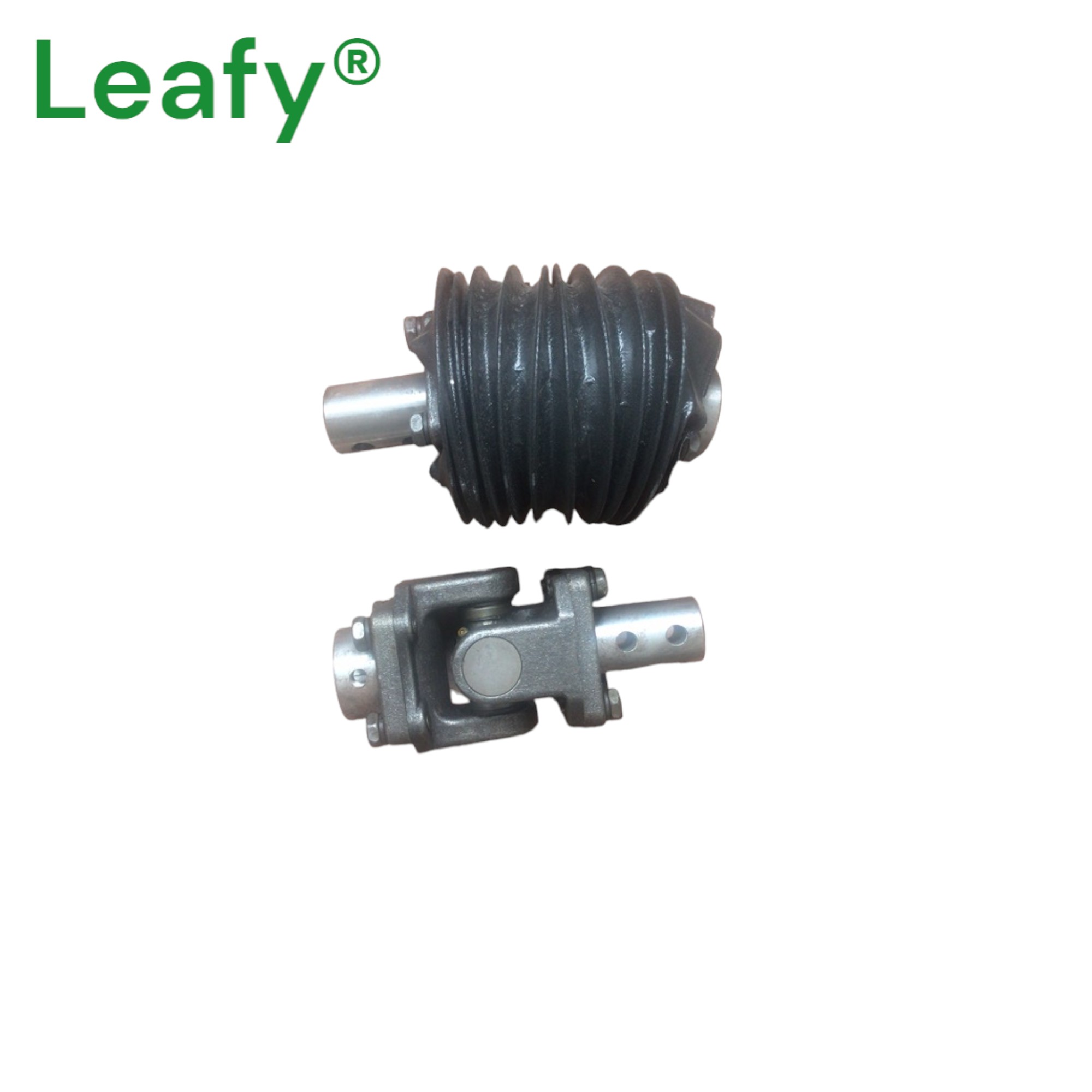

| 6. Movable Joint | 2 | Cast Iron or 45# steel with high quality bearing and reinforce cross |

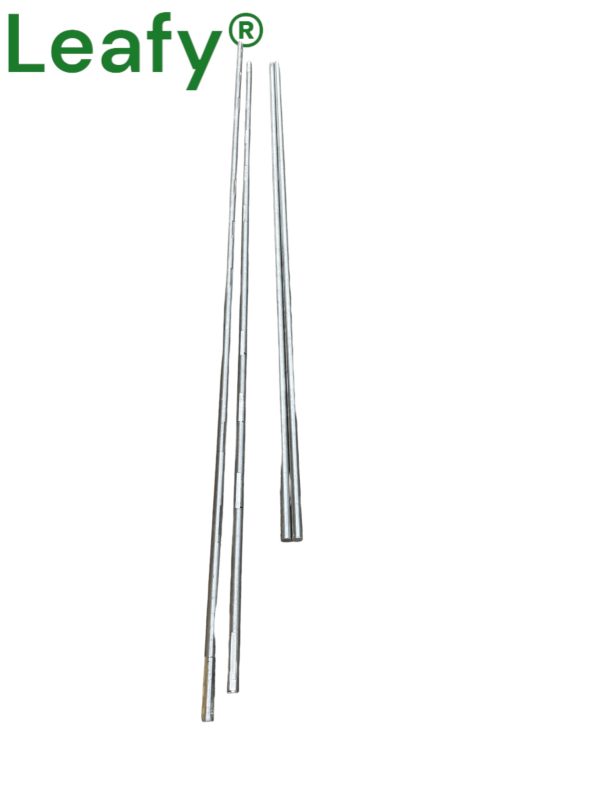

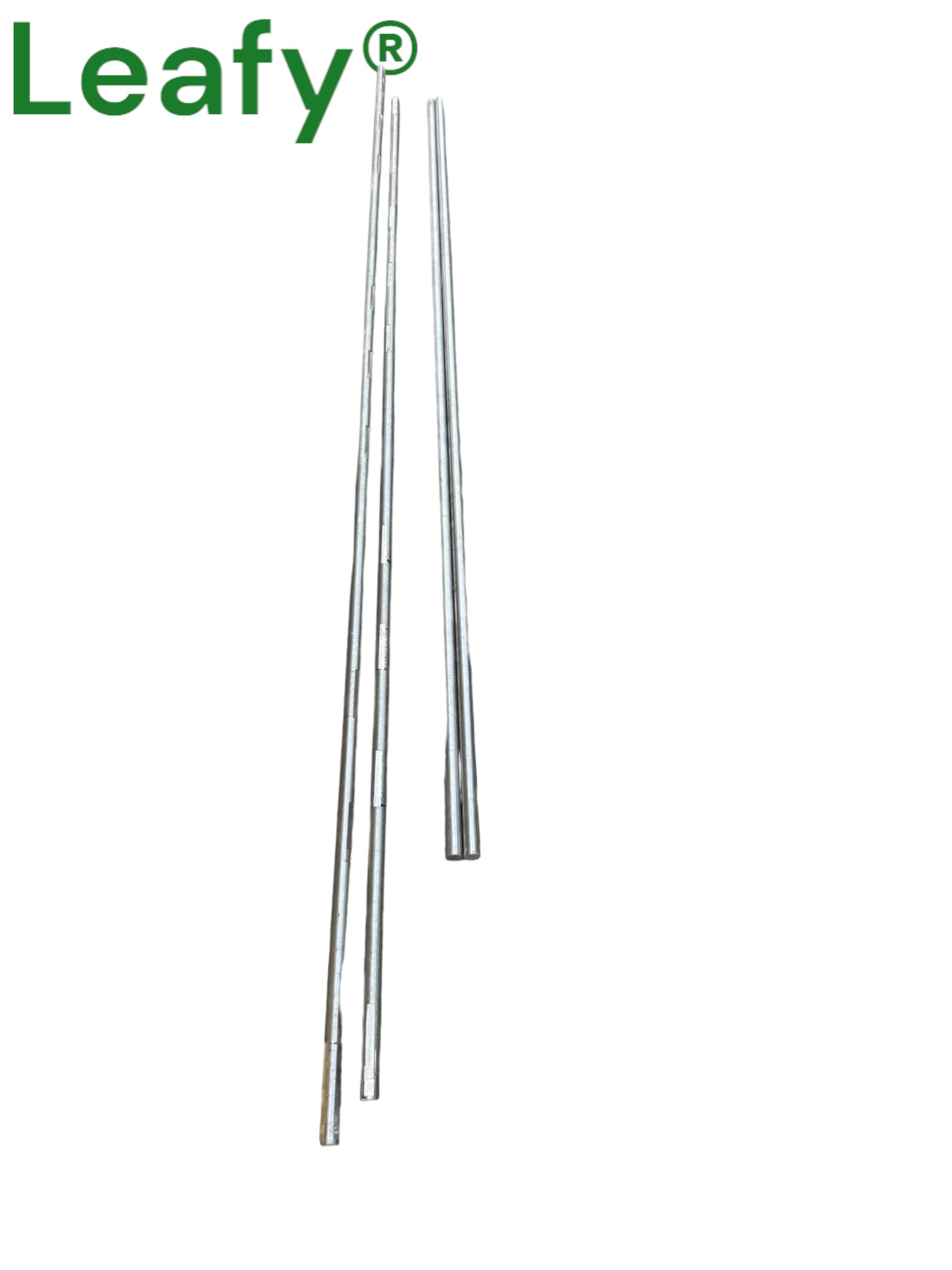

| 7. Transmission shaft | 1/2/3 | Material: 304 Stainless Steel Dimension:25*830mm |

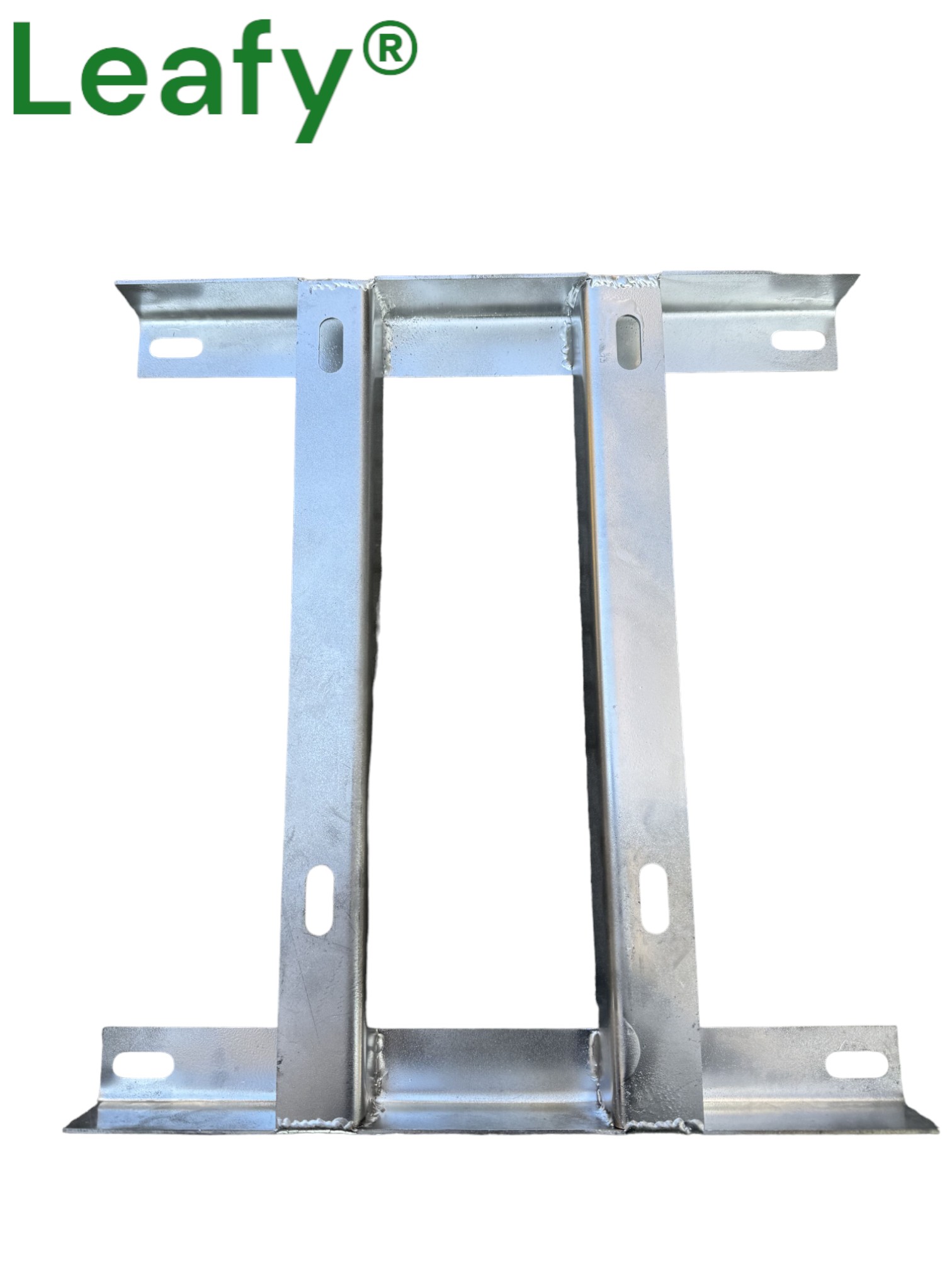

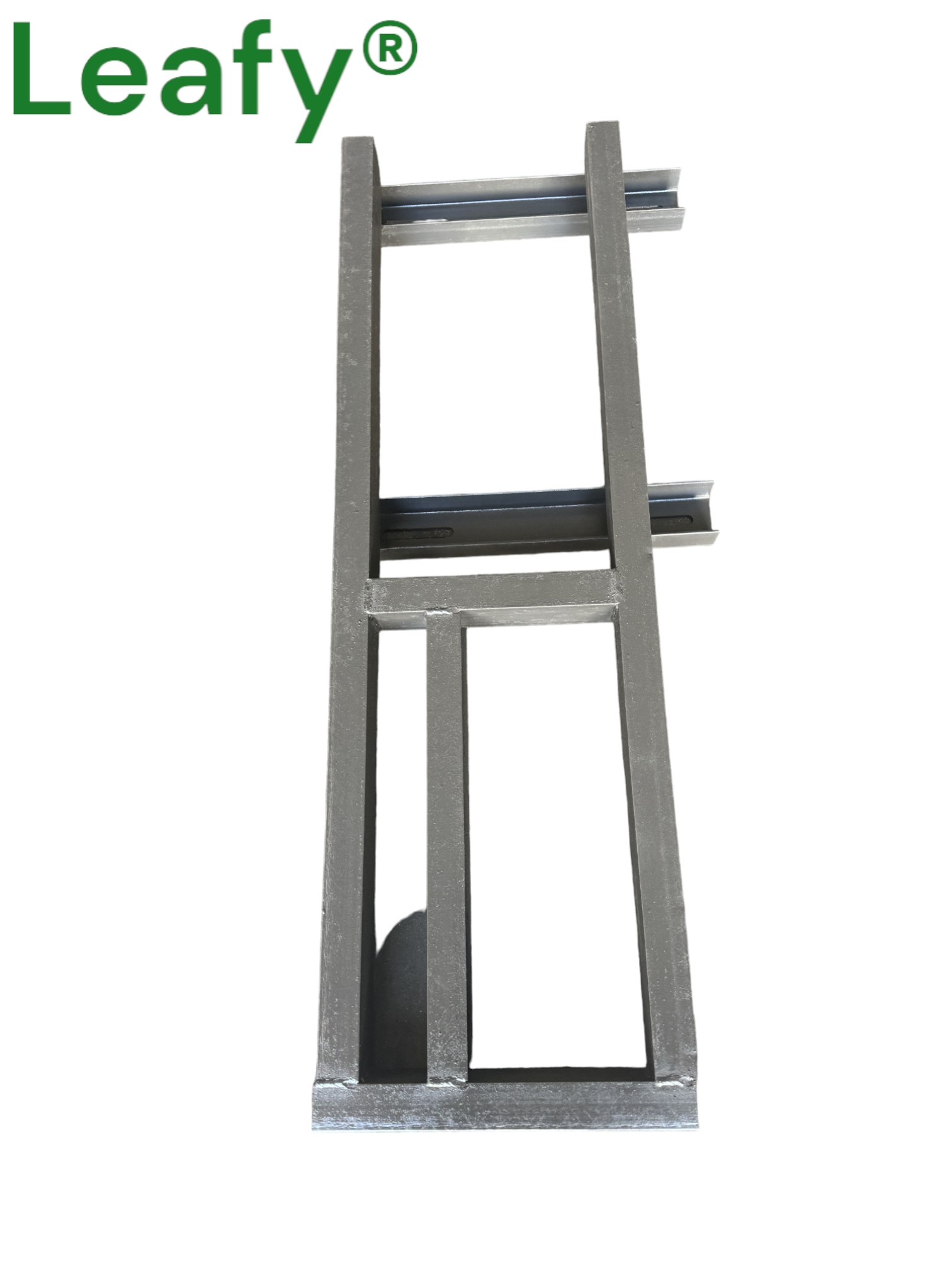

| 8. Frame | 2 | Material: 304 Stainless Steel |

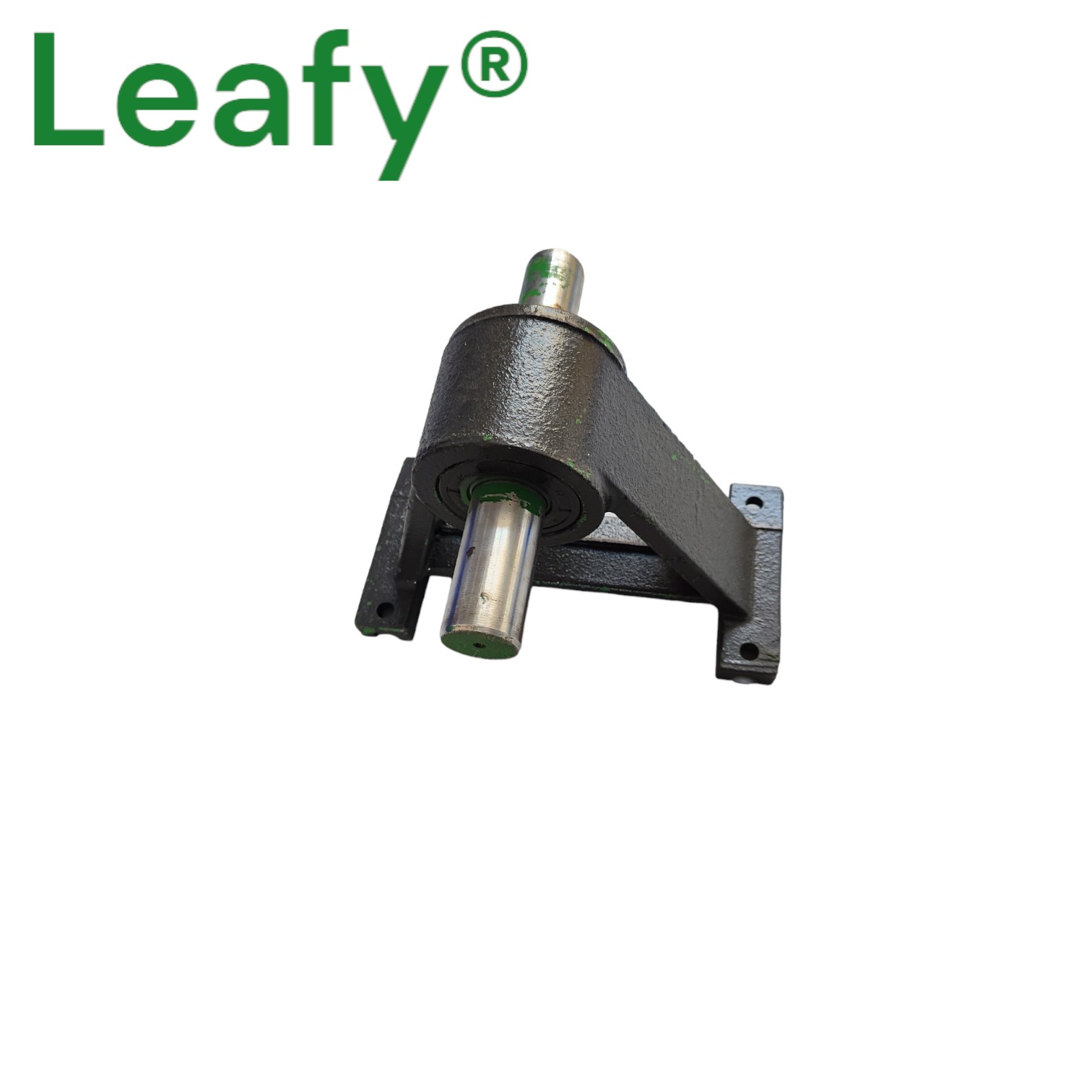

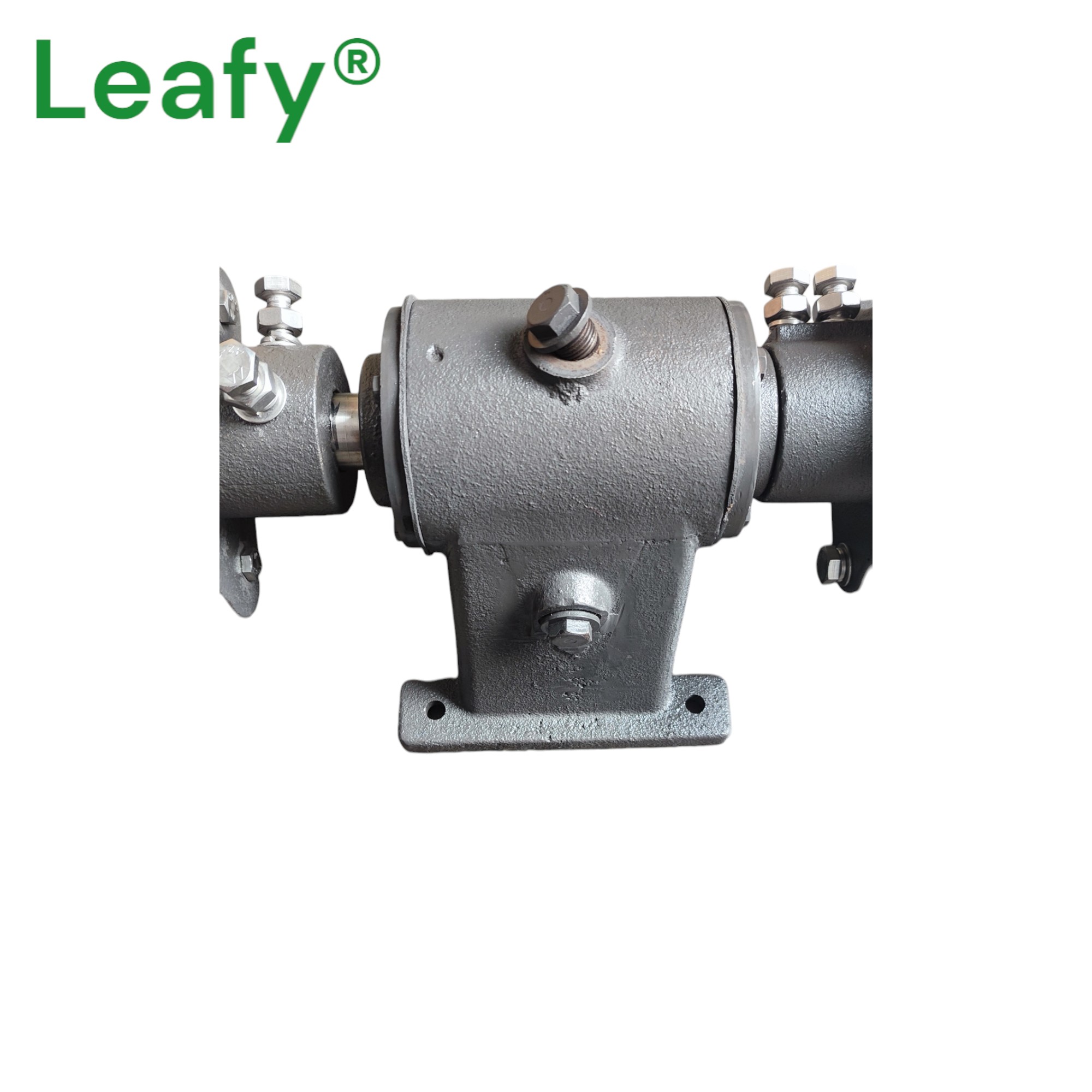

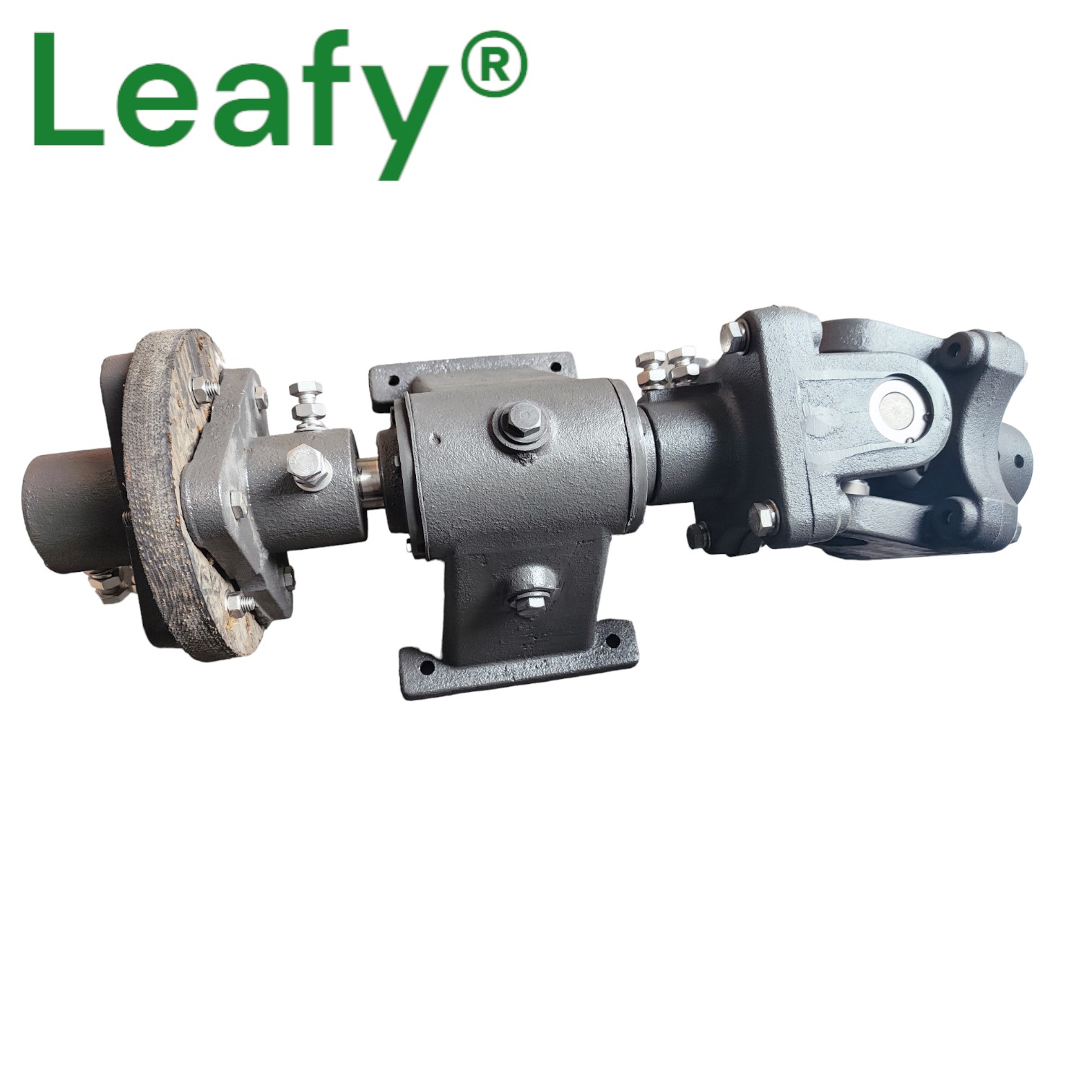

| 9. Bracket bearing | 1 | Material: Cast iron with high quality bearing |
| 10.Bearing Base | 5 | 1. Adjustable 3 in 1 plastic bearing, easy for replacement. 2. No aging or cracking problem for the specially made nylon body. 3. Needle Bearing in the middle, low force of friction. 4. Long working life, 2 times than normal type bearing |
Why choose us:
Products: High quality and efficiency, energy saving, environment protection.
High Quality Motor:
Expertise design for aquaculture industry.
2. 100% new copper wire with high quality stator and rotor.
3. Top quality and above CNS standard.
4. Strict Q.C. to ensure best quality and performance.Low Friction Coefficient Reducer:
1. Updated high quality alloy components.
2. Strong and durable gear wheel and input shaft.
3. Smooth rotation with low resistance to decrease energy losses.
4. Famous brand”Double Bearing” on each side of output shaft, wide gear wheel used to provide better
torque output and durability.
Higher Performance HDPE Impeller with thicker Brass Parts:
1. Replaceable paddle, lower maintenance cost.
2. Toughness against corrosion and sunburn resistance.
3. Professional designed paddle and best blade angle, substantial water splash, strong water current, and high oxygenation performance.
4. 100% New HDPE with UV resistance material and without adding any other material to increase weight.
HDPE Float Boat:
1. Made of 100% new HDPE material to optimize full ductility.
2. Resist impact, acid-alkalinity and sun exposure.
3. One-piece blow molded with absolutely no seeping.
4. 100% New HDPE with UV resistance material and without adding any other material to increase weight.
High Efficiency Oxygen Tranfering Ability:
1HP Paddle wheel Aerator —– ≥ 1.9kg O2/h. Market Standard: 1.5kg O2/h.
2HP Paddle wheel Aerator —–≥ 2.6kg O2/h. Market Standard: 2.1kg O2/h.
3HP Paddle wheel Aerator —–≥ 3.8kg O2/h. Market Standard: 3.0kg O2/h. 4HP Paddlewheel Aerator —–≥ 5.2kg O2/h. Market Standard: 4.2kg O2/h.
Not Only Selling You Aerator, Professional Customize Aeration System for Your Pond.
You can get your own aeration system from our technical department after you provide us one of information as below:
1. Your ponds size, water depth, breeding density, aquaculture species.
2. Your target price for your ponds aeration system.
3. Your request of Oxygen per hour for your pond.
Professional Sale Service : Make you NO-Worry for use.1. Can customize quality level to match customer’s target price.
2. Can provide samples first, samples are packaged by wooden box.
3. Can provide any accessories parts on aerator for any quantity.
4. Many different models and different quality level for customer to choose.
5. Warranty: Different warranty for different quality level.
6. Whole Life free technical guidance, follow up after use situation.
Pre-sale:
1. Suggest to client suitable machine model, final product capacity.
2. Introduce machine’s structure and features in detail, explain the price component.
3. Answer customer concerned questions, and support Customized service for different customer’s requirement.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client,
for your better learn about the machine’s condition.
3. Delivery in time, taking photos during loading, so you can “remote monitoring” your goods.
4. Documents and certificate available in time.
5. Manual documents available.
6.Support online video calls for installation instruction.
7. Support local technical service, 1-2 times per year to visit our distributor and provide technical/Marketing/Sales service.
