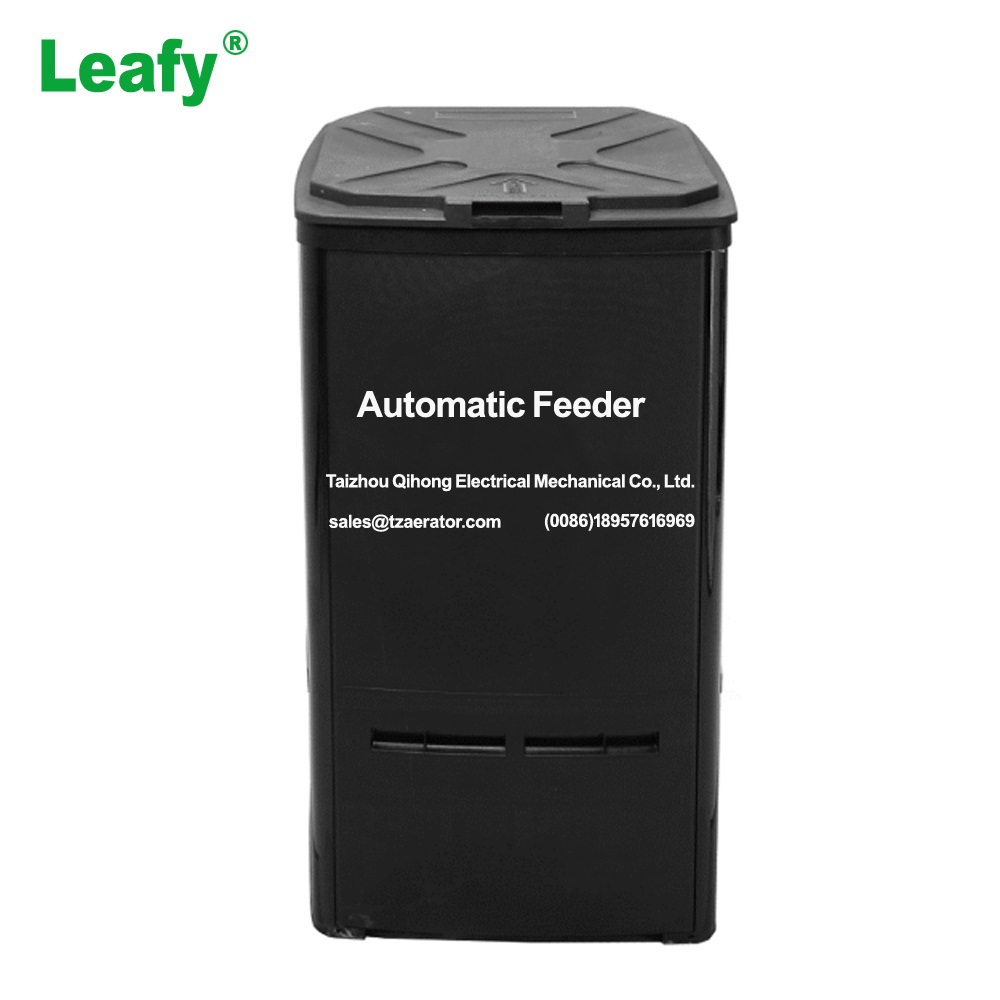

Automatic Shrimp Feeder
Do you have to worry about low survival and low production in your Shrimp Farming pond?
Do you worry about the high incidence of water pollution?
Are you still troubled by the daily feed management?
Then you may need our Automatic shrimp Feeder!
| Advantages | ||||
| A.36 vibration gear, more accurate feeding,30~99 seconds or 1-16 mins interval time to control feed more accurate. It can avoid human error to spread the feed evenly, and it’s accurate feeding management to domesticate the shrimp to grab food to make the shrimp eat less each meal but eat more meals per day to improving the utilization rate of the feed. | ||||
| B.8 groups of time periods maximum can be set in a day to achieve precise feeding management, which can adjust the feeding speed and quantity in time. | ||||
| C.3 minutes automatic shutdown without feed,timed automatic power on and off, LCD display,automatically switched on and off. | ||||
| D.This feeder can increase the feed intake of shrimp and increase the growth rate by more than 20%, the shorten the breeding cycle can reduce breeding risks and labor costs. Its fixed-point feeding gives shrimp a clean and hygienic canteen. | ||||
| E:Stable rudder connection feeding tray, High quality material and long working life. | ||||
| Usage and precautions | ||||
| A:Small and frequent meals: Feeding in separate meals, or feeding throughout the day. Recommended to feed at least one meal at night if its separate meals feeding. | ||||
| B:watch the feed table frequently: Place at least one feeder basket net about 4m in front of the feeder in the feeding area, so that the feed can enter normally and observe the eating and health of the shrimp in time. | ||||

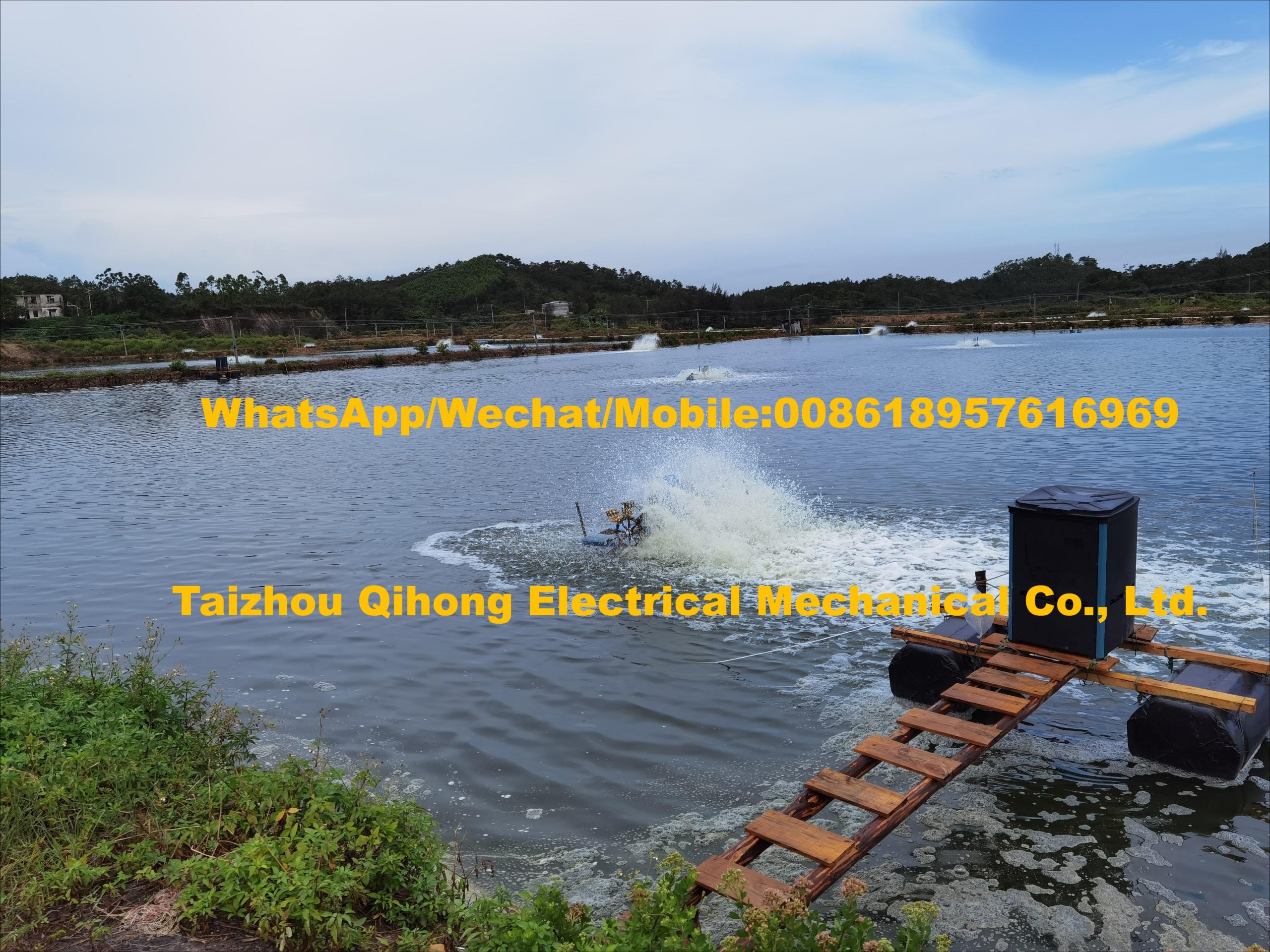

| C:Feeder placement: The feed table is placed 6-10 meters away from the shore of the pond to avoid the feed blowing to the shore when it is windward. A single material table is placed with 2 feeders in a figure-eight shape. |
Specification:
| Model | QHS-150, High speed shrimp feeder | QHS-120,Low speed shrimp feeder | ||
| Power | 150w | 120w | ||
| Voltage | 180-280v AC 50Hz/60Hz | 180-280v AC 50Hz/60Hz | ||
| Loading feedstuff Capacity | QH-80HS is 80KG, QH-80HS is 120KG. | QH-80LS is 80KG,QH-120LS is 120KG. | ||
| Revolving speed | 2800r/mins | 1400r/mins | ||
| Suitable feeding Area | 100㎡ | 40㎡ | ||
| Dimensions | 56*56*80cm | 56*56*80cm | ||
| Max feeding ability | 500kg/h | 500kg/h | ||
| Max feeding distance | ≥10m | ≥6m | ||
| Feeding sector angle | ≥140° | ≥110° | ||
| Feeding Speed | Adjustable（2mins can feed 20KG Max, it also can set up feed 5KG by 10hours etc) | Adjustable（2mins can feed 20KG Max, it also can set up feed 5KG by 10hours etc) | ||
| Feeding capacity | 1-36 vibration gear, three combinations of vibration gear, feeding and interval can adjust the feeding speed | 1-36 vibration gear, three combinations of vibration gear, feeding and interval can adjust the feeding speed | ||
| Set period of time | 8 groups of time periods can be arbitrarily set to switch on and off | 8 groups of time periods can be arbitrarily set to switch on and off | ||
1. Stable physical properties, high temperature resistance to 110 ℃, mold production for parts, standardized assembly line operations.
4. Over sized bell mouth feeding design, feeding fan angle is larger; throwing feeds is wider and more uniform.
7. The throwing disc is made of plastic mold inlaid steel sheet. its well balanced when the high -speed motor running, it won’t cause any vibration due to the imbalance of the throwing disc, which will not stop throwing feeds.
8.The sensor install on the vibration plate to prevent it from dust accumulation which will cause the feeder to not have the function of “automatic induction detection of feed”.
10. Famous brand”Double Bearing” on each side of output shaft, wide gear wheel used to provide better
torque output and durability.
